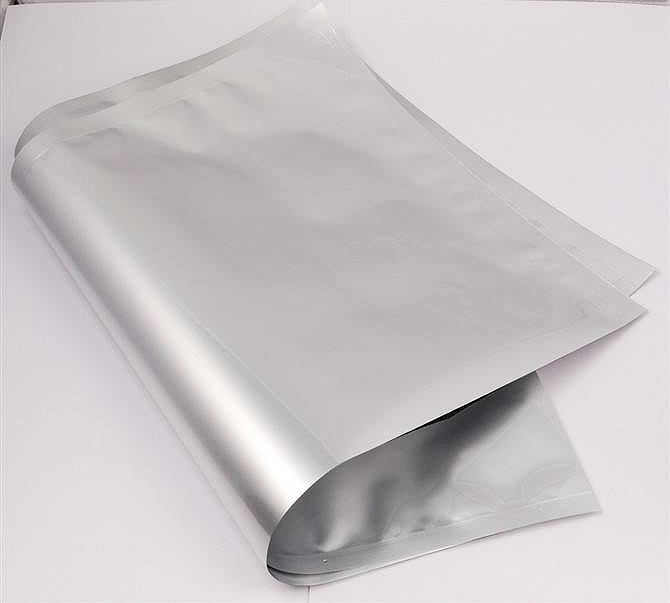

Antistatic aluminum foil bag

Details
Product description:

Anti-static bag can maximum protect static-sensitive elements from potential electrostatic hazards. Their unique material structure can form inductive cover to protect the items of the bag and isolate from electrostatic field. The inner layer consists of static-eliminating polyethylene or polypropylene, which can prevent static electricity from being generated in the bag, and the surface resistance can reach: ≤108-1010Ω.

Different materials can be selected and used according to the cargo loaded by the customer.

Aluminum foil electrostatic bag:It can achieve waterproof, moisture-proof, oxygen barrier, puncture resistance and vacuum-pumping etc function.

Nylon static free bag:High transparency, low oxygen permeability, good moisture resistance, high strength of extension and puncture resistance, easy heat sealing, good air tightness and keeping from aging etc.

Static free shielding bag:Silver-gray translucent, inner products can be seen from outside, with static free and low cost features.

The above bags are specially designed for the electronic products packing that require anti-static function. The specifications can be customized according to your requirements, and the surface of the bag can be printed with various words, patterns and trademarks etc.

Technical parameters:

NO.  Item  Unit Index  Standard
1 Metal layer resistance Ω <0.1Ω ASTMD-257
2 Shielding capability dB >60dB MIL-B*81705-C
3 Shielding voltage V <10V EIA541
4 Tensile strength kg >24lb(10kg) FTMS101
5 Water Vapour Transmissi om 100sq.in./24hrs 0.0006gm/100sq.in./24hrs ASTMF1249
6 Oxygen Transmission 100sq.in./24hrs 0.0006gm/100sq.in./24hrs ASTMF1249
7 Inner surface Resistivity Ω 108-11Ω ASTMD-257
8 Outer surface Resistivity Ω 108-11Ω ASTMD-257
9 Heat seal Temperature 170+10
10 Heat seal Time Sec 0.3-0.5
11 Heat seal Pressure Pa 40-60
12 Seal strength >3kg/cm GB/96-04-10
13 Appearance   Nodelamination,burst Seal,wrinkle,warp,break, Foreign particle adherence, Air buble beyond sealing GB/96-04-10
14 Size mm Thickness +10%;length+3mm; Width:+2mm GB/96-04-10
