Product description:
Anti-static bag can maximum protect static-sensitive elements from potential electrostatic hazards. Their unique material structure can form inductive cover to protect the items of the bag and isolate from electrostatic field. The inner layer consists of static-eliminating polyethylene or polypropylene, which can prevent static electricity from being generated in the bag, and the surface resistance can reach: ≤108-1010Ω.
Different materials can be selected and used according to the cargo loaded by the customer.

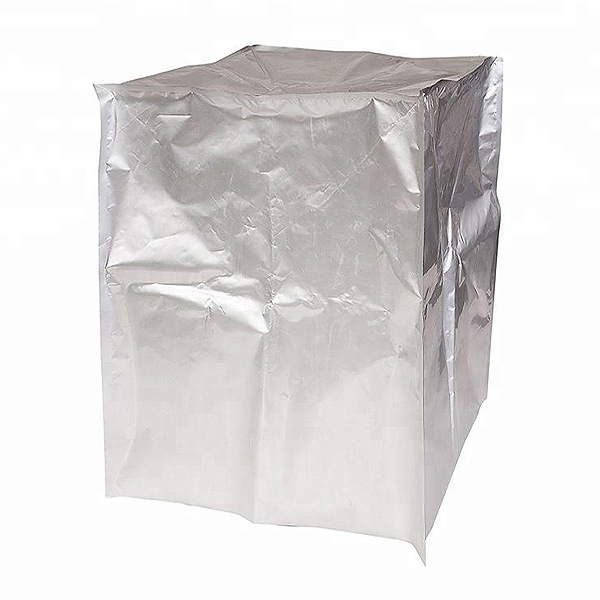

Aluminum foil electrostatic bag:It can achieve waterproof, moisture-proof, oxygen barrier, puncture resistance and vacuum-pumping etc function.
Nylon static free bag:High transparency, low oxygen permeability, good moisture resistance, high strength of extension and puncture resistance, easy heat sealing, good air tightness and keeping from aging etc.
Static free shielding bag:Silver-gray translucent, inner products can be seen from outside, with static free and low cost features.
The above bags are specially designed for the electronic products packing that require anti-static function. The specifications can be customized according to your requirements, and the surface of the bag can be printed with various words, patterns and trademarks etc.
Technical parameters:
NO. |
Item |
Unit |
Index |
Standard |
1 |
Metal layer resistance |
Ω |
<0.1Ω |
ASTMD-257 |
2 |
Shielding capability |
dB |
>60dB |
MIL-B*81705-C |
3 |
Shielding voltage |
V |
<10V |
EIA541 |
4 |
Tensile strength |
kg |
>24lb(10kg) |
FTMS101 |
5 |
Water Vapour Transmissi om |
100sq.in./24hrs |
0.0006gm/100sq.in./24hrs |
ASTMF1249 |
6 |
Oxygen Transmission |
100sq.in./24hrs |
0.0006gm/100sq.in./24hrs |
ASTMF1249 |
7 |
Inner surface Resistivity |
Ω |
108-11Ω |
ASTMD-257 |
8 |
Outer surface Resistivity |
Ω |
108-11Ω |
ASTMD-257 |
9 |
Heat seal Temperature |
℃ |
170+10 |
|
10 |
Heat seal Time |
Sec |
0.3-0.5 |
|
11 |
Heat seal Pressure |
Pa |
40-60 |
|
12 |
Seal strength |
℃ |
>3kg/cm |
GB/96-04-10 |
13 |
Appearance |
|
Nodelamination,burst Seal,wrinkle,warp,break, Foreign particle adherence, Air buble beyond sealing |
GB/96-04-10 |
14 |
Size |
mm |
Thickness +10%;length+3mm; Width:+2mm |
GB/96-04-10 |
