Product description:
Anti-static bag can maximum protect static-sensitive elements from potential electrostatic hazards. Their unique material structure can form inductive cover to protect the items of the bag and isolate from electrostatic field. The inner layer consists of static-eliminating polyethylene or polypropylene, which can prevent static electricity from being generated in the bag, and the surface resistance can reach: ≤108-1010Ω.
Different materials can be selected and used according to the cargo loaded by the customer.
Aluminum foil electrostatic bag:It can achieve waterproof, moisture-proof, oxygen barrier, puncture resistance and vacuum-pumping etc function.
Nylon static free bag:High transparency, low oxygen permeability, good moisture resistance, high strength of extension and puncture resistance, easy heat sealing, good air tightness and keeping from aging etc.

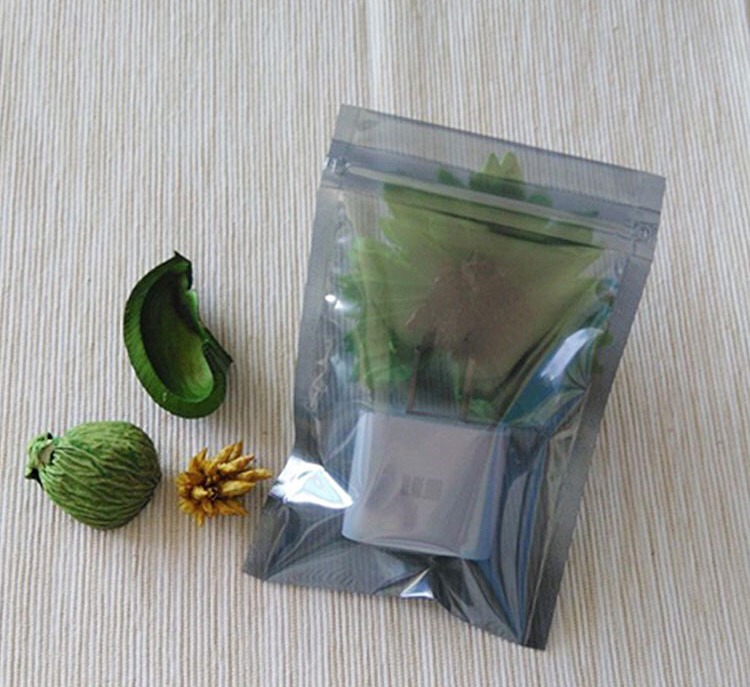

Static free shielding bag:Silver-gray translucent, inner products can be seen from outside, with static free and low cost features.
The above bags are specially designed for the electronic products packing that require anti-static function. The specifications can be customized according to your requirements, and the surface of the bag can be printed with various words, patterns and trademarks etc.
Technical parameters:
NO. |
Item |
Unit |
Test standard index |
1 |
Metal layer resistance |
Ohm/sq |
<100 |
2 |
Metal layer resistance |
Optical density |
40%-0.4optical density |
3 |
Surface resistivity |
Ohm/sq |
<1010 |
4 |
Time for static removal |
5000-OV |
<0.01Se.FTMS 101 Bmethod 4046 |
5 |
Friction static |
E1A541Appendix C Avg |
Triboelectric Nanocou lombs Quartz<13n/in Tefion.<13n/in |
6 |
Capacitance release |
Voltage differen ce-E1A541 |
<10V |
7 |
Anti-erosion |
FTMS101 C |
No visible spots FTMS101C Method 3005 |
8 |
Tensle strength |
lbs./in |
ASTM D882 >18 |
9 |
Tear initiation |
lbs./in |
ASTM D1004 >2.5 |
10 |
Puncture resistance |
P.S.I |
ASTM D3420 >100 |
11 |
Tear resistance |
lbs./in |
ASTM D882>8 |
12 |
MVTR |
gm/100in-2/24hrs |
ASTM E96<0.2 |
13 |
Oxygen barrier |
CC/100in-2/24hrs |
ASTM D3985 <0.5 |
14 |
Heat seal temperature |
F |
250-375F |
15 |
Heat seal pressure |
P.S.I |
30-70 |
16 |
Breaking tensile Force N/15mm |
N/15 mm |
GB/96-04-10 |
17 |
Breaking elongation Rate |
% |
GB/96-04-10 |
18 |
Laminating strength N/15mm |
N/15MM |
GB/96-04-10 |
19 |
Seal strength |
N/15MM |
GB/96-04-10 |
20 |
Size |
GB/96-04-10 |
Thickness:+10%;length:+3mm;width:+2mm; |
21 |
Appearance |
GB/96-04-10 |
No delamination ,burst seal ,wrinkle,warp, break,foreignpa rticle adherence ,air bubble beyond sealing |
